The ITX OFST is our own take at how to keep your RAM cool - now specifically designed for ITX motherboards!

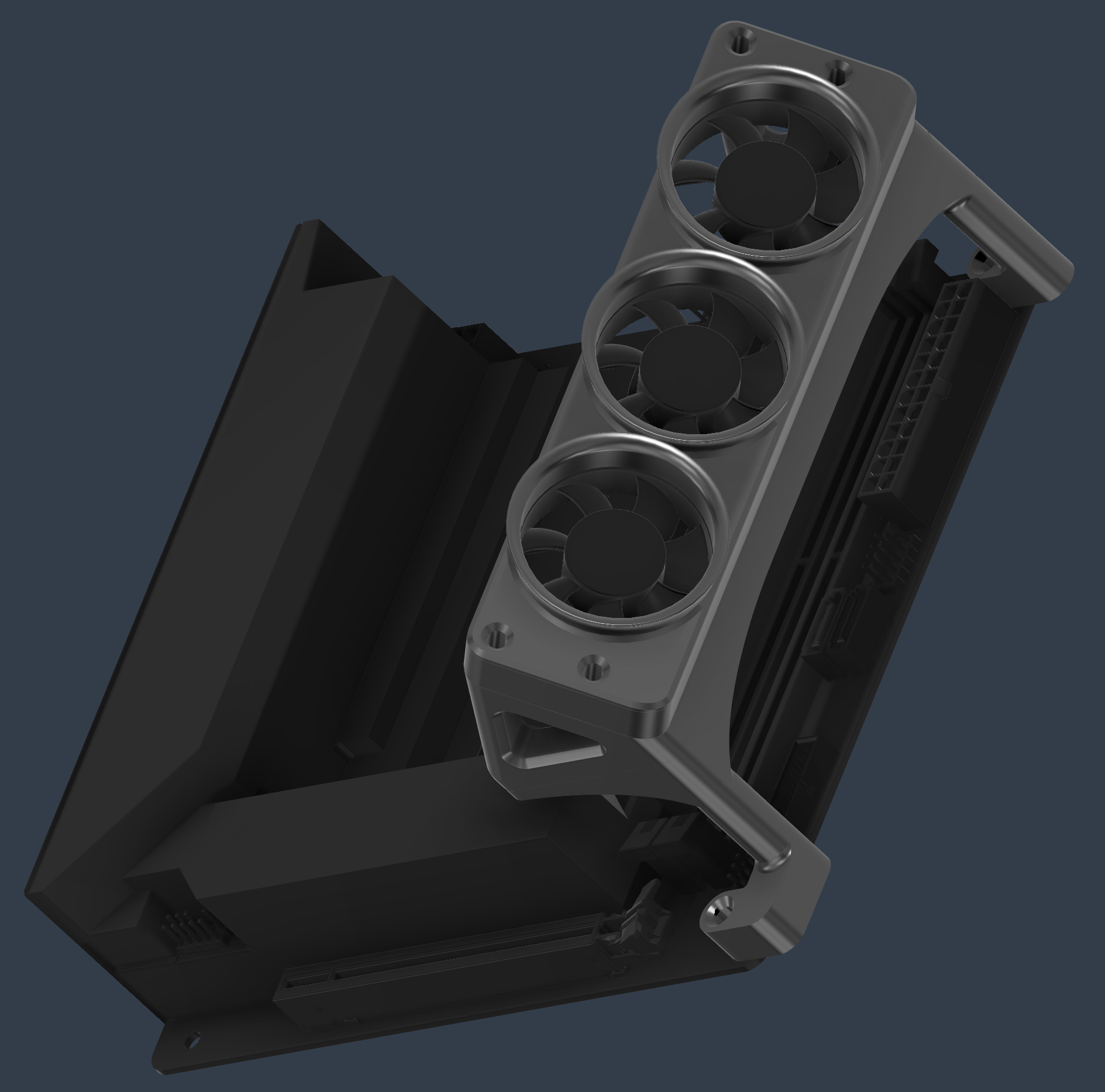

This is an STL file set for our triple 40mm Fan Offset Ram Cooler design.

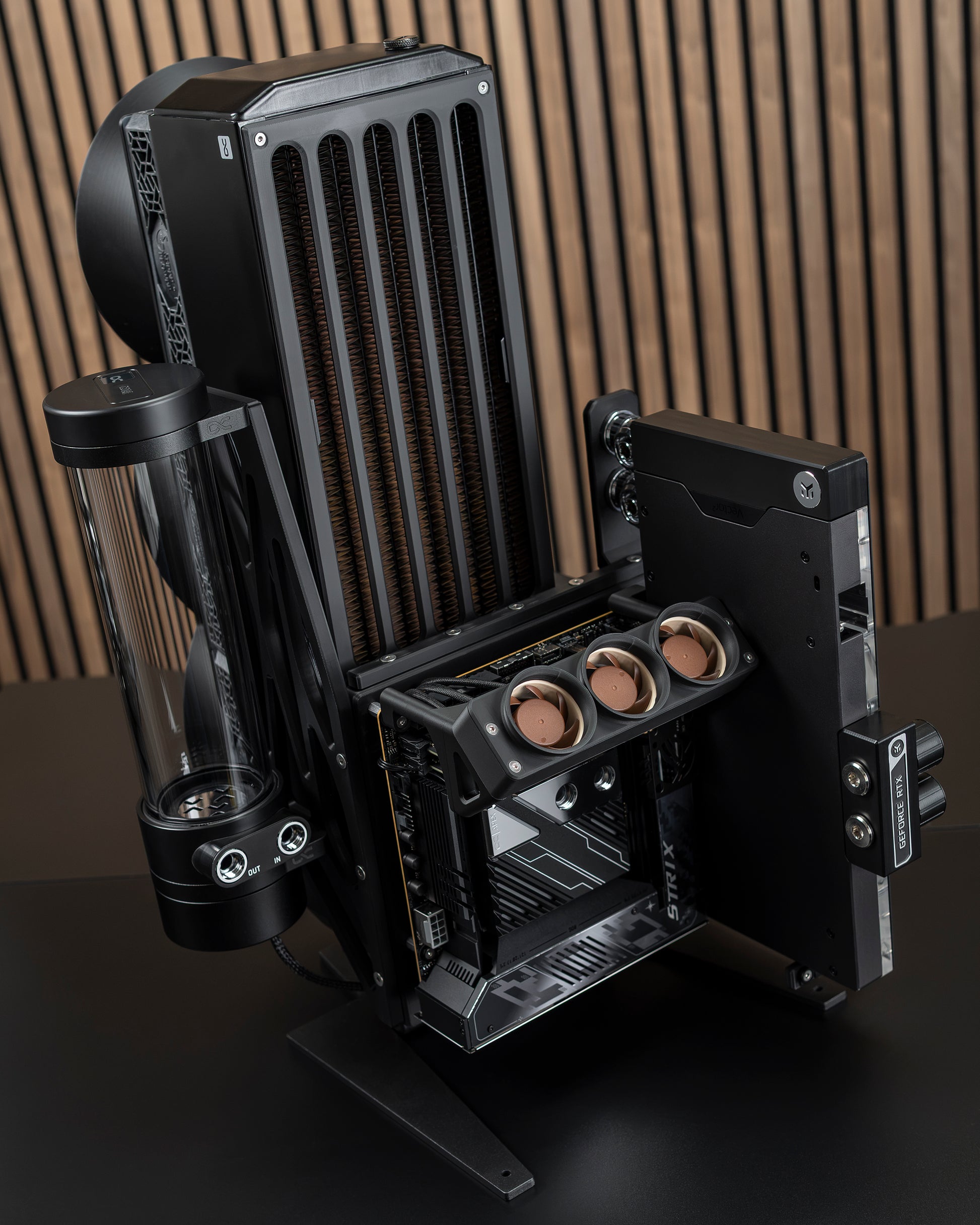

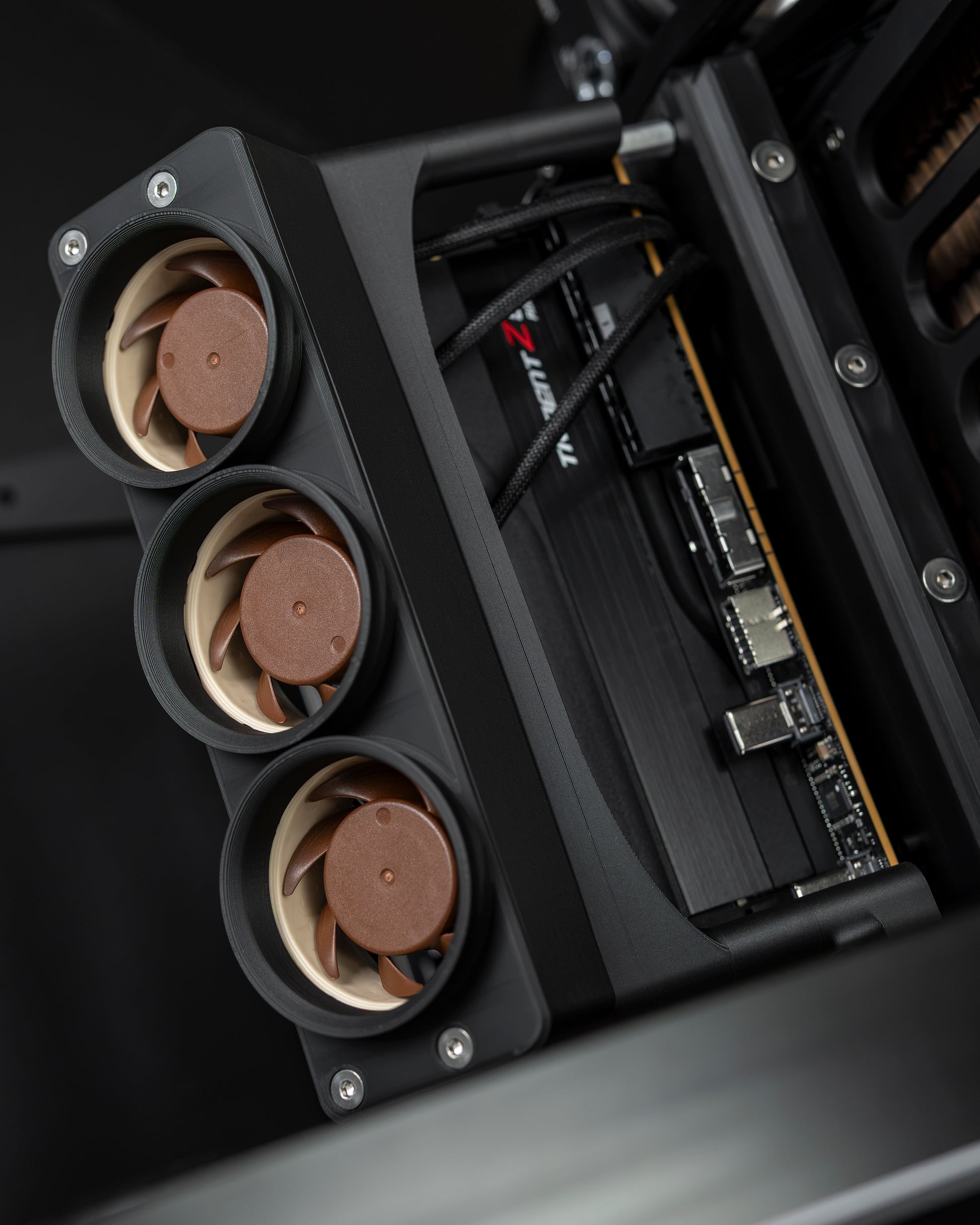

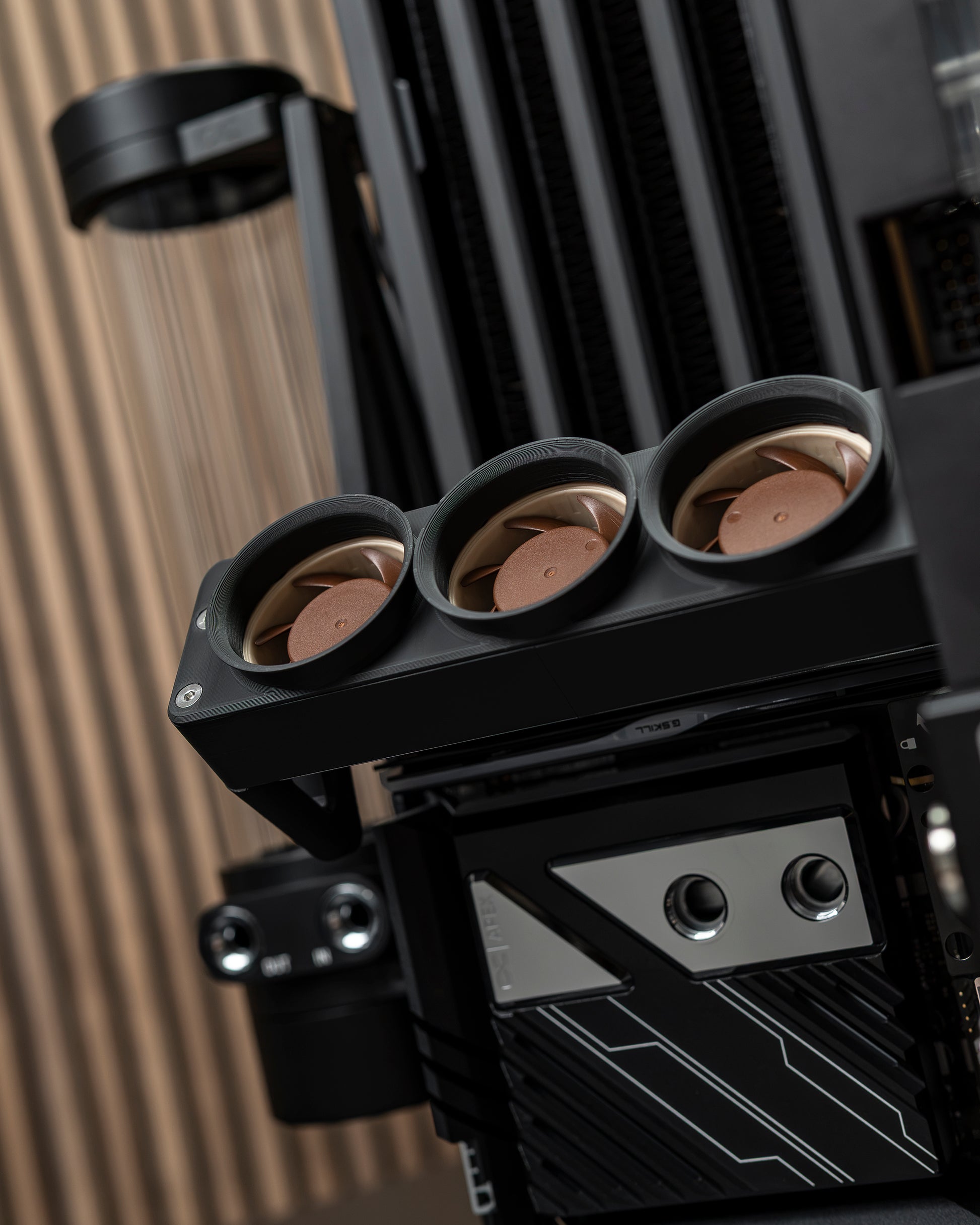

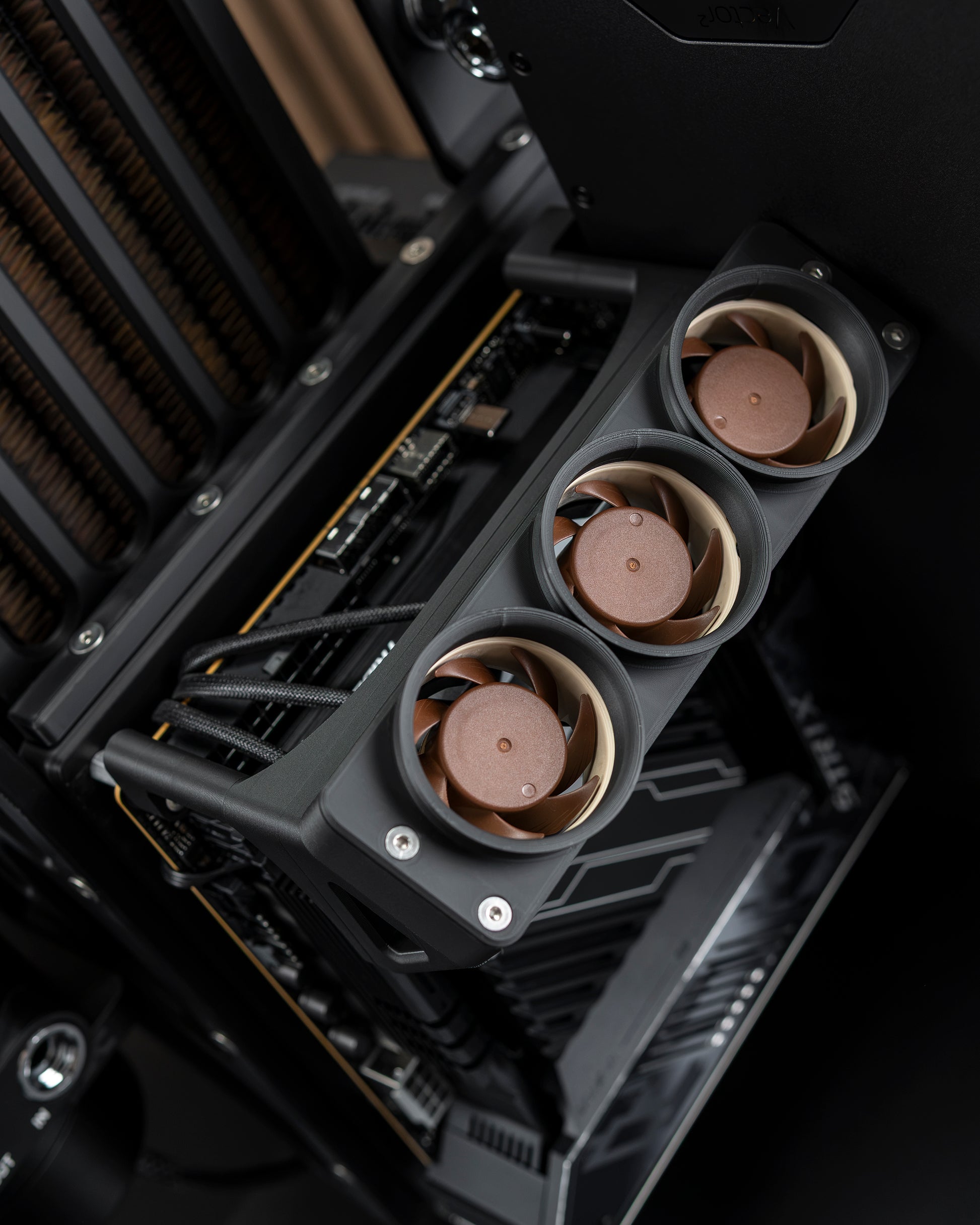

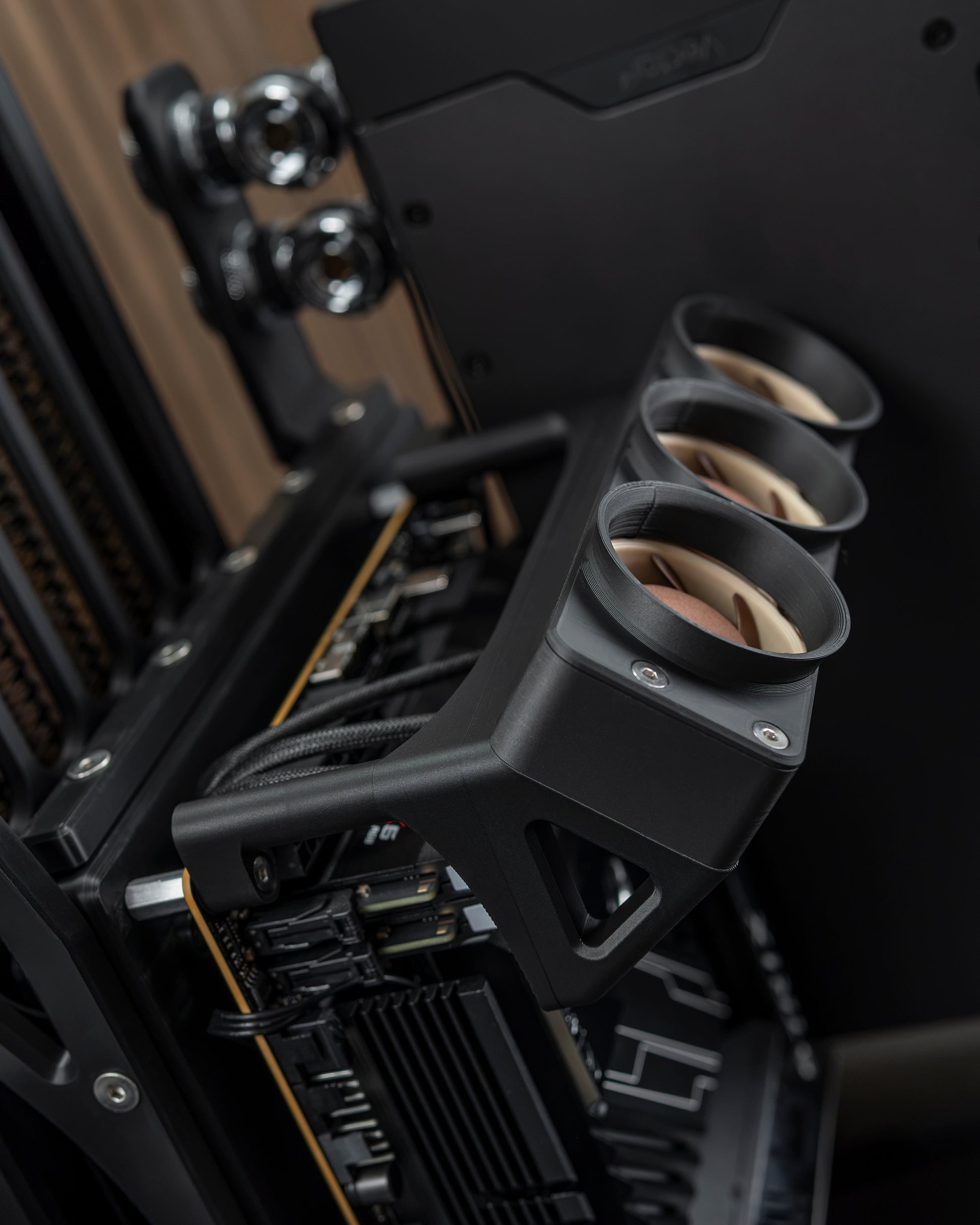

This design also features a low profile velocity stack design that can be mounted on top of whatever triple 40mm fans of your choosing. This cools your RAM, along with your CPU socket and surrounding VRMs on your motherboard.
Includes just the STL files for download, not an actual printed product. You will need to 3D print your own cooler from these files.
There are two variants of legs, as well as two variants that account for type of 40mm fan:
- Short legged for lower profile ITX boards
- Tall legged for higher profile ITX boards (tall heatsinks and daughter boards)
- 10mm shroud for 10mm thick 40mm fans
- 20mm shroud for 20mm thick 40mm fans

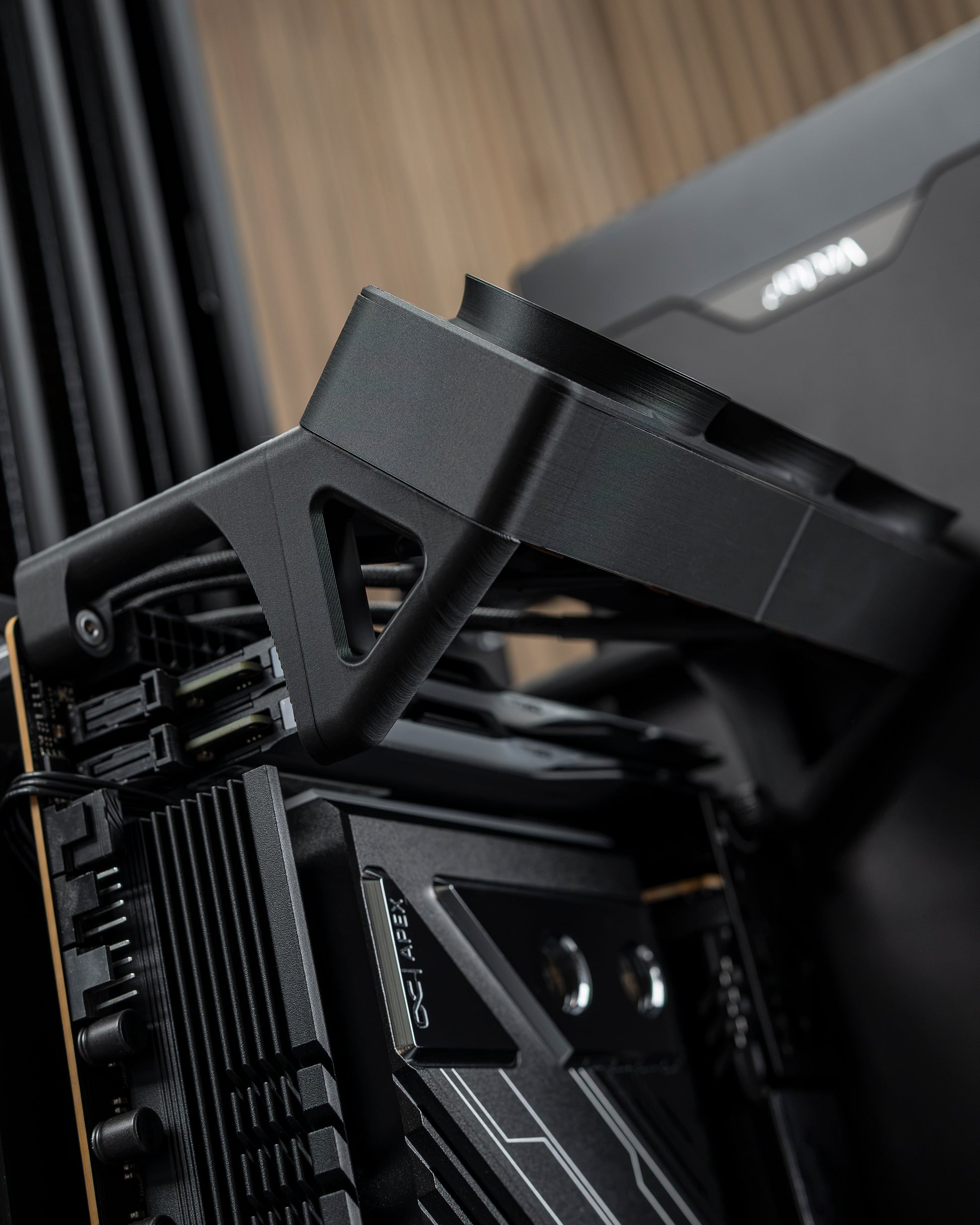

The legs are to ITX standards, which utilize your motherboard/case's original standoffs/dimensions, but offset the cooler so that your GPU can still be mounted without issue.
RECOMMENDED HARDWARE:
Recommended M3 threaded brass inserts : https://amzn.to/3IJv0Di
Recommended 6-32 thread type standoff screws for mounting Short/Tall Legs: https://amzn.to/3Td2VJT
Recommended M3 thread type standoff screws for mounting Short/Tall Legs: https://amzn.to/3R8M0Yx
Recommended M3 screw for connecting Leg Connector to Tall/Short Legs: https://amzn.to/4hom85s
Recommended M3 screw for mounting 20mm thick fans: https://amzn.to/4hom85s
Recommended M3 screw for mounting 10mm thick fans: https://amzn.to/3R8M0Yx
Recommended M3 screw for mounting Top Stacks to Fan Mount for 20mm thick fans: https://amzn.to/4hom85s
Recommended M3 screw for mounting Top Stacks to Fan Mount for 10mm thick fans: https://amzn.to/3R8M0Yx
