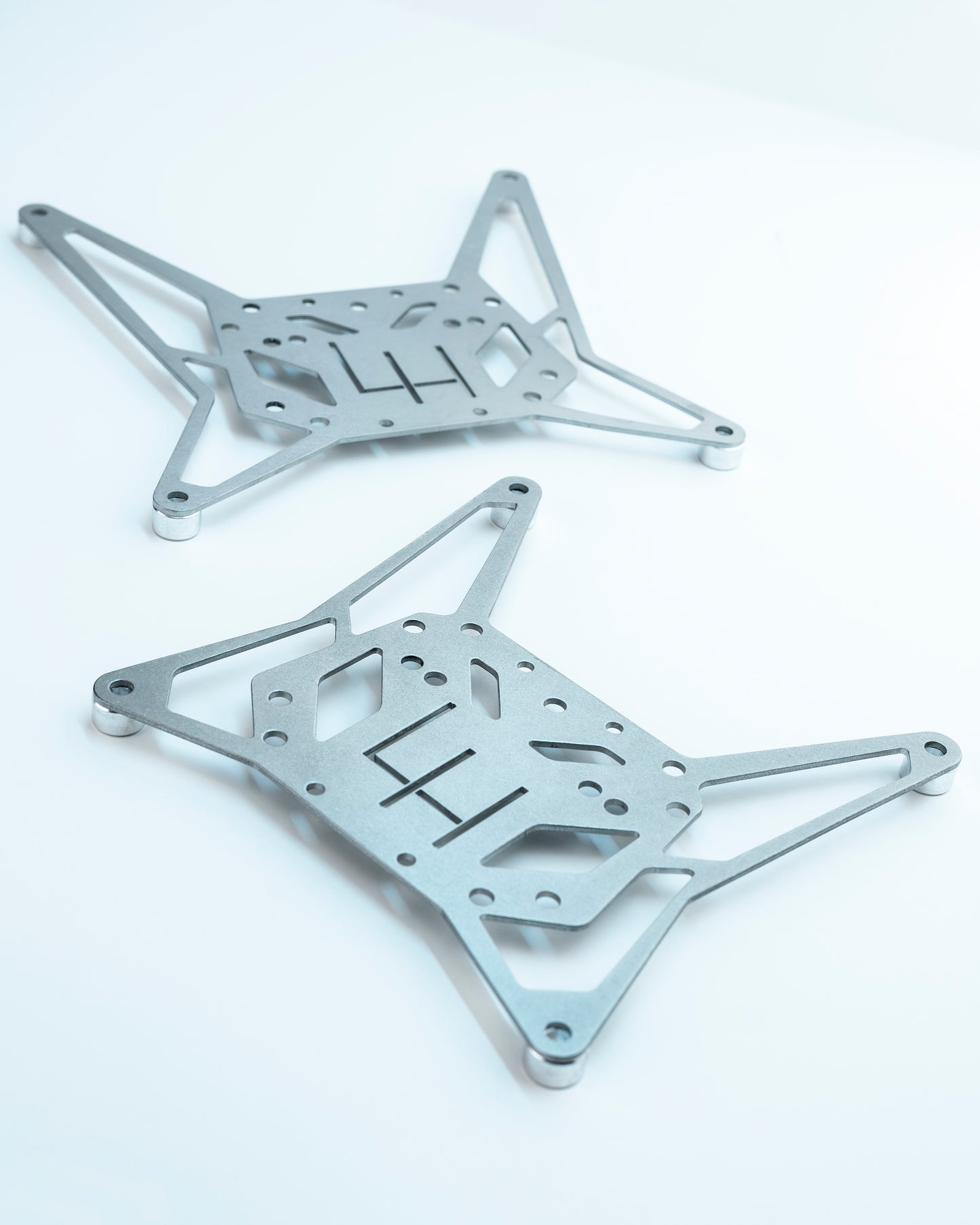

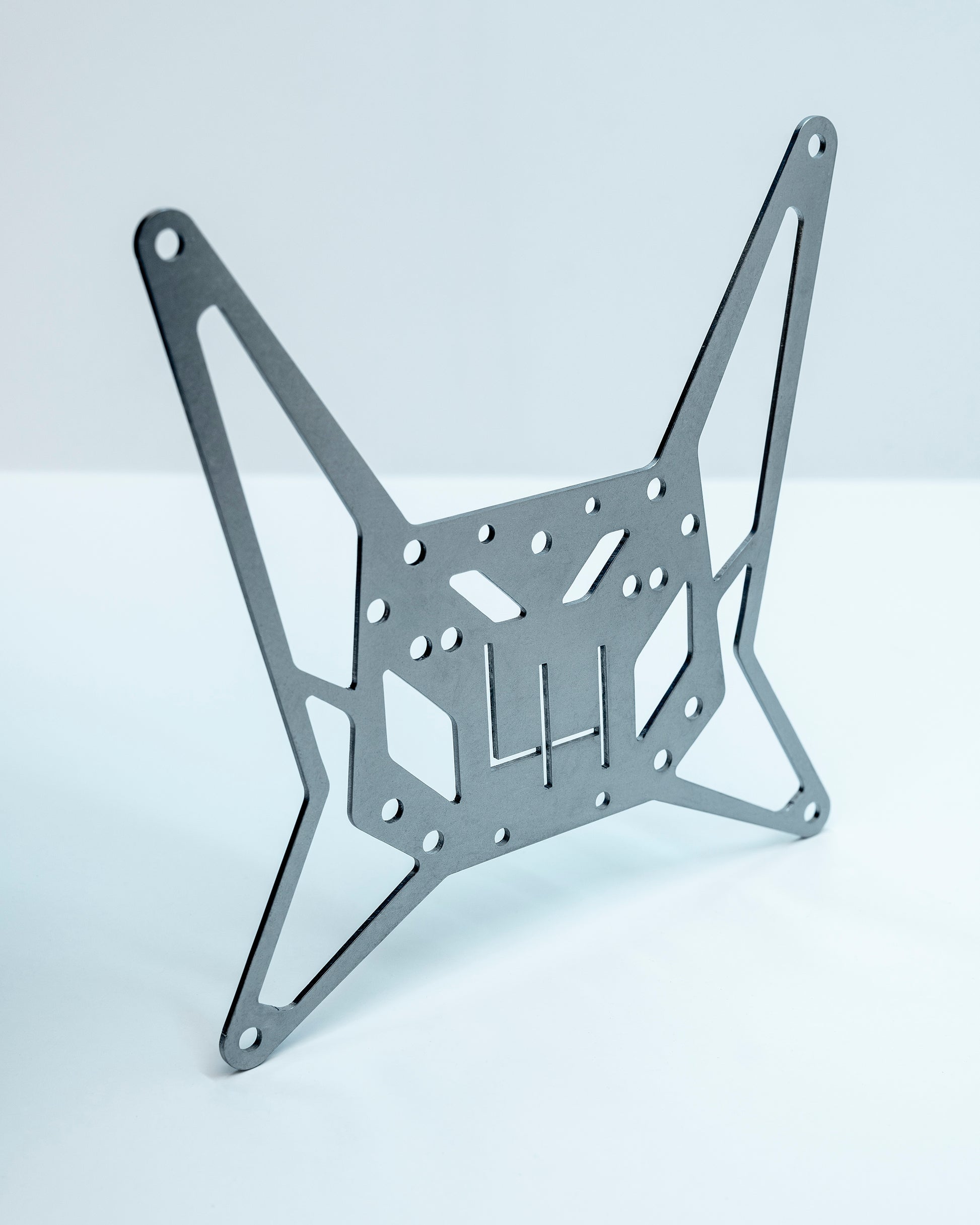

The LiquidHaus MNT is a 120mm or 140mm based pump and reservoir mount with a striking aesthetic.
Capable of mounting the following watercooling hardware:
Universal DDC
EKWB D5
Bitspower Premium Reservoir Mount
Heatkiller Tube
Aquacomputer Ultitube
Made in 16ga. 304 Stainless Steel and tumbled for a consistent smooth finish, these brackets can handle the weight of any watercooling accessory.

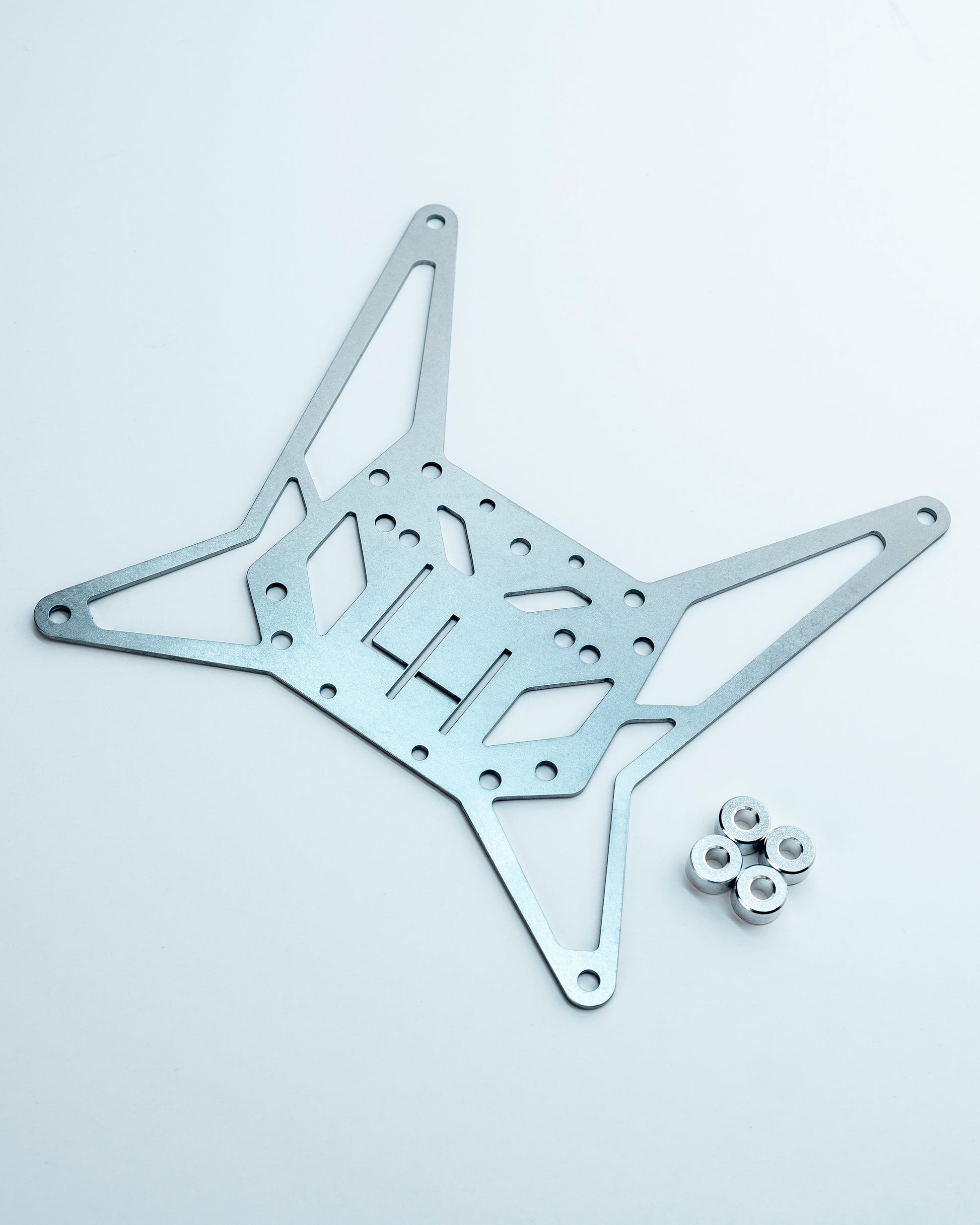

Includes x4 aluminum spacers (10mmODx5mmIDx8mmL) for a finished and elevated look.
NOTE: Screws not included, you will need to acommodate for the additional dimensions of the MNT and included spacers for proper installation. (1.5mm + 8mm = 9.5mm)
Fully modular rail design allows adjustment of each component for precise fitment.
Included LiquidHaus BLK bracket allows easier setup for complex watercooling loops.
Universal DDC bracket compatible with a wide range of watercooling hardware.
Multiple GPU placement and orientation options with included GPU bracket
Rear 140mm mount dedicated for accessory components like distros or fans.
Collapsible content
Compatibility
Required Supporting Hardware:
ITX motherboard
ATX power supply
420mm radiator
Custom PSU cable lengths (see below)
Materials
10 Ga. & 11 Ga. Brushed 304 Stainless Steel
Manufactured in the USA
Assembled Dimensions
From 19.75” to 23” Tall
9.25” Wide
From 7.25” to 10.5” Deep
Custom Power Supply Cable Lengths
EPS: 18-20”
24pin: 30”
PCIe/12VHPWR/12v-2x6: 35” for right angle connectors, 38” for straight angle connectors.
We recommend CableMod and utilizing their Custom Configurator!
LIQUIDHAUS RECOMMENDATIONS
Assembly Order Recommendation for the LiquidHaus ISO: Radiator > Motherboard Plate > PSU Bracket > PSU > Motherboard > GPU > Watercooling Components.
Intended Audience: Designed for advanced watercooling PC builders, but built for ease of use. Enjoy exploring various hardware orientations!
Cable Management: We recommend CableMod custom-length cables or making your own for a polished look. Ideal PSU length for aesthetics is 7.125”. Longer PSUs work but require adjusting cable lengths (based on a standard 6.5” PSU).
Hardware Requirements: This chassis requires a 420mm radiator, ATX PSU, and ITX motherboard. SFX PSUs are not recommended.
Accessory Brackets: The 120mm accessory bracket supports distros and radiators up to 360mm. The rear 140mm mount offers additional compatibility for 120mm or 140mm watercooling components.
GPU Placement: A PCIe riser cable (20cm Right Angle Gen4) is required but not included. We recommend this one.
Cable Routing: A small channel near the motherboard IO is for routing display cables and peripherals. Use right-angle cables for a cleaner look.
Adjustment Tip: All parts are hand-inspected, but if a bracket isn’t perfectly aligned, you can bend it by hand for precise adjustment.
ISO Prototype Builds
Here are some examples of ISO builds we have completed during our product testing. Please note that, due to the nature of the prototype, certain small details may differ from the final product.
